8-BUTTON SWITCH PANEL WITH CIRCUIT BREAKER HIGH PERFORMANCE SERIES

8-BUTTON SWITCH PANEL WITH CIRCUIT BREAKER HIGH PERFORMANCE SERIES

SKU 46-HPSK01
Connectez-vous pour voir le prix

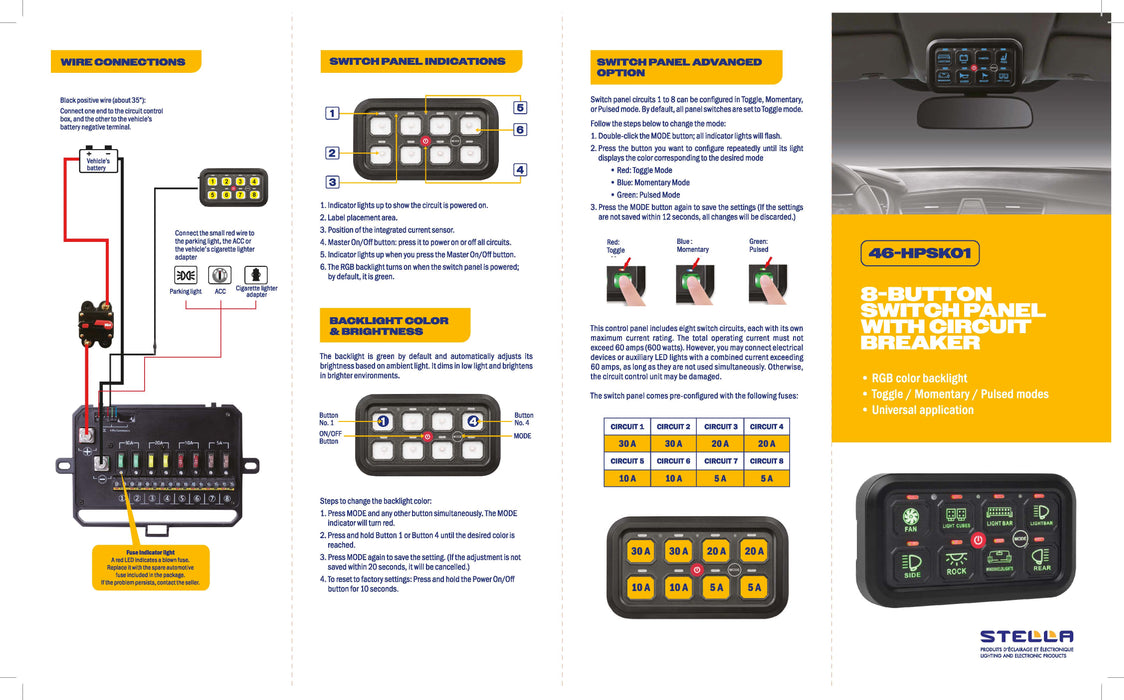

This High Performance series 8-switch panel with circuit breaker includes eight circuits. Each circuit can be configured at toggled, momentary or pulsed mode. The switch panel comes preconfigured with 5, 10, 20 and 30-amp fuses. The total operating current must not exceed 60 amps.

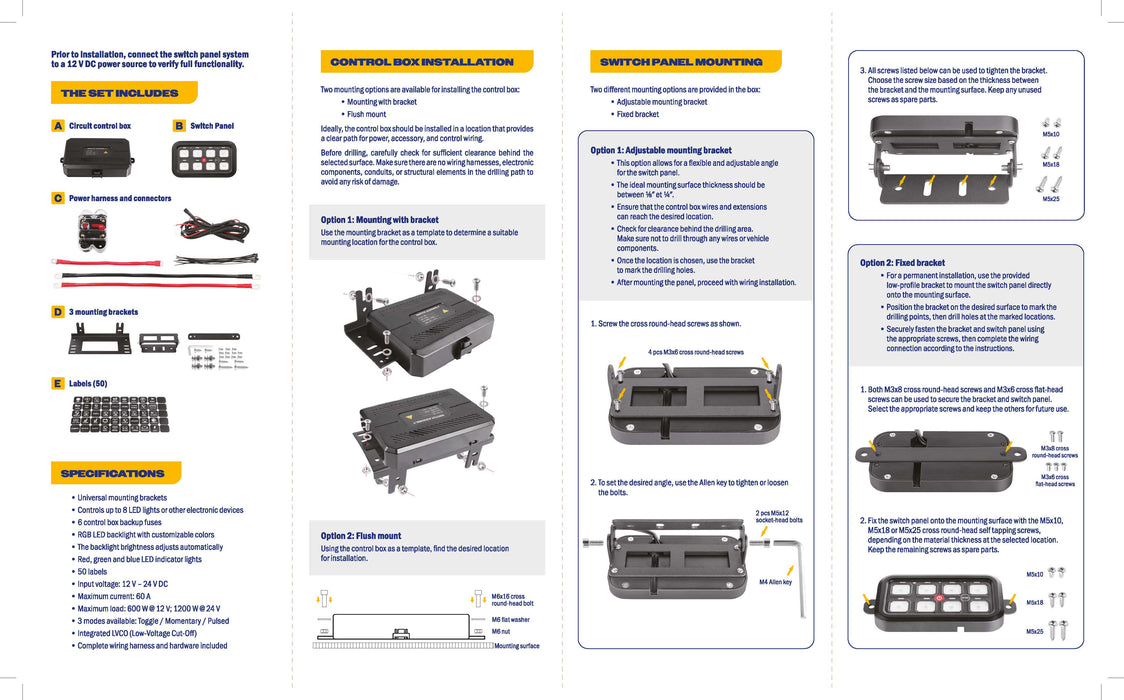

The control box can be mounted using the bracket provided in the package or flush-mounted. For the switch panel, two mounting options are included, adjustable or fixed bracket.

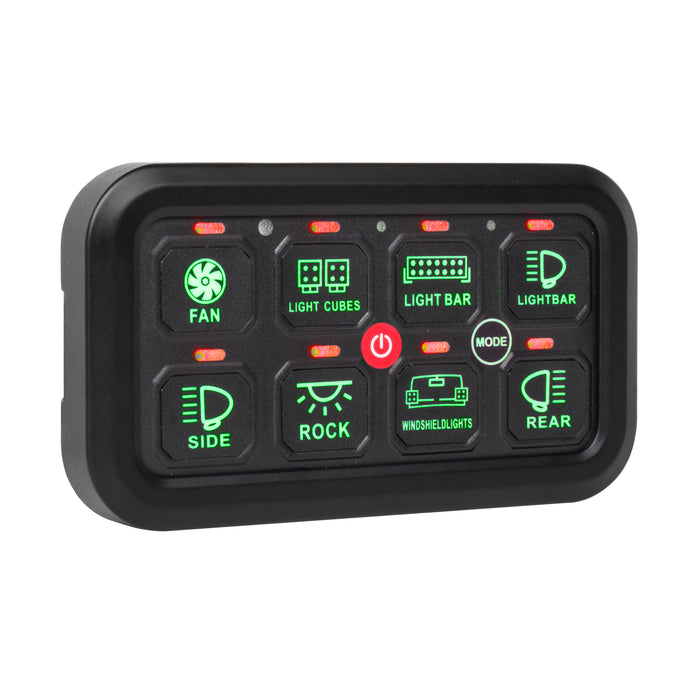

The RGB backlight brightness automatically adjusts according to ambient light.

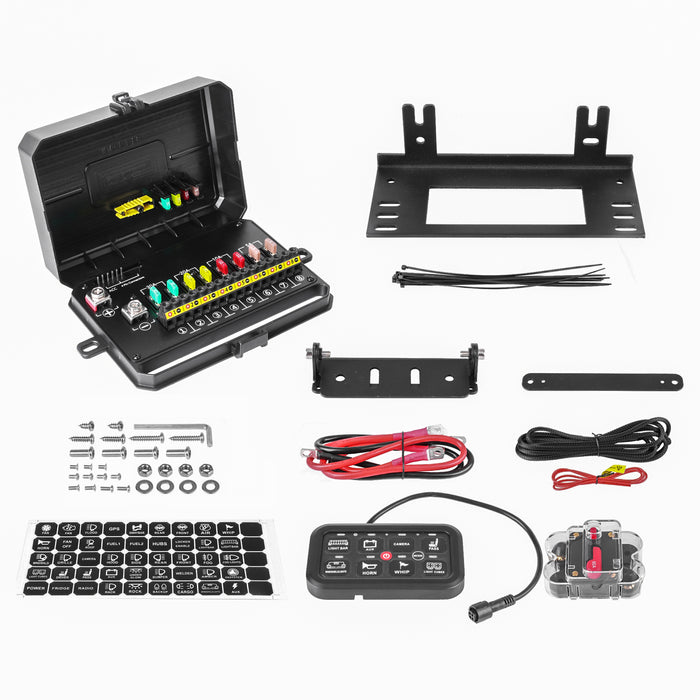

The set includes:

  • Circuit control box
  • Switch panel
  • Power harness and connectors
  • 3 mounting brackets
  • Hardware
  • 50 labels
  • User manual



Nous en avons actuellement 44 en stock.
